Picture & Fixed Windows

Picture & Fixed Windows in Pembroke Pines, FL | TruePane Windows & Doors

Picture & Fixed Windows give you the cleanest sightline you can buy in Florida. No sashes, no hinges, no hardware interrupting the view. Just a substantial laminated impact glass panel sealed into a precision-set frame. We install these across Pembroke Pines, Miramar, Weston, Cooper City and the surrounding Broward County communities, and we’ve been doing it long enough to know that a fixed window is only as good as the perimeter seal around it. TruePane Windows & Doors supplies and installs Picture & Fixed Windows across our PGT, CGI, CWS, ES Windows, ECO and Mr-Glass lines. Call (863) 208-6105 to talk specs, sizing or scheduling a free on-site measurement.

Call (863) 208-6105

Product Overview - Picture & Fixed Windows

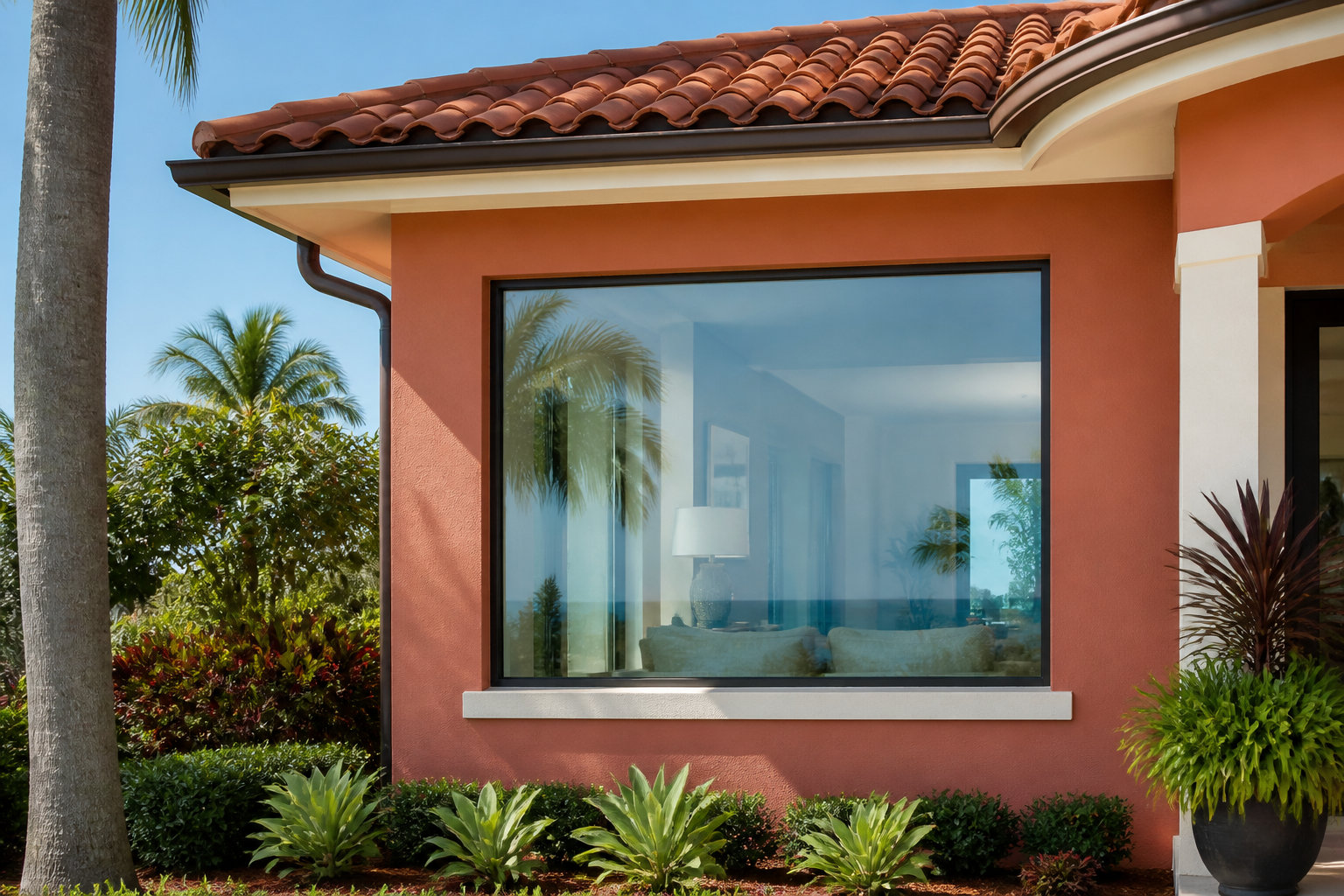

A picture window is the architectural answer to a simple question: what if the glass could just be the wall? These are non-operable laminated impact glass panels built for maximum unobstructed views. In Pembroke Pines, where a lot of homes face lakes, golf courses or preserve land, that’s not a luxury. It’s the whole point of the window.

The profile is straightforward. A heavy-gauge aluminum or vinyl frame holds a single expansive lite of impact-rated glass. Because there are no moving parts, the frame can be slimmer than what you’d see on an operable window, which means more glass area and less metal. That’s why picture windows get paired so often with operable units on either side – a fixed center window flanked by casements, single hung windows or horizontal rollers gives you ventilation when you want it and an uninterrupted view when you don’t.

For hurricane-prone construction, the fixed window has a structural advantage that operable windows have to work harder to achieve. There’s no meeting rail, no interlock, no track. The entire perimeter is anchored continuously to the rough opening. That makes for a stiffer, simpler load path when wind pressure hits. It’s one of the reasons engineers like specifying fixed lites in high-exposure elevations, and why we recommend them to Pembroke Pines homeowners who want the biggest impact-rated opening their wall framing can handle.

We set these windows level, plumb and square as a matter of routine, because an eighth-inch deviation at the sill becomes a visible wave across a 10-foot glass lite. Our crews have installed picture windows up to the maximum 120-inch width, and we’ll tell you honestly if your opening, header or wind zone calls for a smaller panel or a different configuration.

Technical Specifications

The table below covers what you’ll actually specify with us when you’re pricing a Picture & Fixed Window in Pembroke Pines. We keep the options deliberately focused because a fixed impact window is a structural product, not a decor item. Every option listed here is available across the manufacturer lines we carry.

• Frame Materials: Aluminum or Vinyl. Aluminum gives you the slimmest sightlines and is standard for most Miami-Dade NOA-rated configurations in our area. Vinyl is a strong insulating choice, resists coastal salt air corrosion and carries a warmer visual profile on Mediterranean-style homes. Both are thermally broken where the line allows.
• Maximum Size: Up to 120 inches wide. Height depends on the manufacturer’s NOA-approved configuration and your specific wind zone. We’ll verify the largest approved panel size for your opening before we quote it.
• Glass Options: Laminated Impact Glass with PVB Interlayer (standard for impact), Low-E Insulated Glass (second surface low-emissivity coating in a sealed insulating unit), Tinted Glass (bronze or gray for solar control and glare cut), Clear Glass (maximum visible light transmission).
• Finishes: White, Almond, Bronze, Black, Tan. Standard across most PGT, CGI, CWS and Mr-Glass configurations, though not every line offers every color. We’ll confirm availability on your quote.
• Glazing Type: Structurally glazed per the manufacturer’s approved assembly. No weep system, no track, no screen pocket. It’s a sealed, drained perimeter glazing condition.

Hurricane & Compliance Performance

Everything below describes how this product family is engineered and validated for Florida code. The specific approval numbers vary by manufacturer, frame material, glass type and panel size, so we confirm them on your written quote before you order.

Laminated Impact Glass

The core of this window is a laminated lite made of two panes of glass bonded to a PVB (polyvinyl butyral) interlayer. Under impact, the glass fractures but the interlayer holds the pieces in the frame. That’s the mechanism that keeps wind and debris out of your house. It’s the same principle used in automotive windshields, engineered here for hurricane loading.

Miami-Dade NOA / FL Product Approval

The specific window configurations we sell carry Miami-Dade NOA (Notice of Acceptance) or Florida Product Approval numbers issued per configuration. That’s the approval path a Broward County building official accepts in Pembroke Pines. We verify the applicable number for your exact window size and glass make-up on your specific quote – never a generic claim, always the actual document.

FBC / HVHZ Compliance

These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements, the standard that governs Pembroke Pines and all of Broward County. HVHZ is the strictest wind-code jurisdiction in the state. A window approved for HVHZ carries approvals that exceed what the rest of Florida requires for non-HVHZ zones.

TAS 201 / 202 / 203 Testing Context

HVHZ-rated products in this category are tested under the TAS protocol family. TAS 201 covers large-missile impact – firing a length of timber at the glass. TAS 202 covers cyclic wind-pressure loading – pushing and pulling the assembly under repeated pressure cycles that simulate a hurricane’s gusts. TAS 203 covers forced-entry resistance. We’re naming these because building departments here ask for them by number.

Design Pressure for Your Wind Zone

We match design pressure to your specific wind zone, up to +/-100, and never higher. A double-strength rating on a window in a low-exposure interior wall isn’t a bonus – it’s money spent on a certification you don’t need and a heavier frame than you want. We calculate the actual required DP for your elevation, exposure category and opening size, then spec the window to meet it.

Energy Performance Options

Low-E and insulated glass options are available on the Impact Series. A Low-E coating on the second surface cuts solar heat gain without noticeably darkening the room, and an insulated airspace adds thermal resistance. For Pembroke Pines homes with significant east or west glass, we like Low-E insulated units in picture windows as a way to manage cooling load without giving up the view.

Color & Glass Options

White and Almond remain our most common finish choices in Pembroke Pines, because they read cleanly against stucco and match most existing window packages when you’re replacing just a few units. Bronze and Black give a modern, high-contrast look that works well on contemporary Florida homes and on homes with dark roof tiles or bronze pool-cage framing. Tan is the quiet option on earth-toned exteriors where you want the windows to disappear into the wall color.

On glass, the decision usually comes down to what the window is doing. Clear laminated impact glass is the purest for a north-facing lake view or an interior garden wall. Tinted glass knocks down glare on a western exposure and gives a subtle solar control without the cost of a Low-E insulating unit. Low-E insulated glass is our go-to recommendation for large picture windows on south or west elevations in Pembroke Pines, because the sun load here is real and the cooling season runs nine months of the year. Your sales quote will itemize every glass option we priced so you can see exactly what each choice costs.

Installation by TruePane Windows & Doors in Pembroke Pines

Here’s the thing about an impact-rated picture window: the certification lives in the assembly, but the real-world performance lives in the installation. A Miami-Dade NOA number doesn’t help you if the frame is shimmed crooked, the anchor spacing is off, or the perimeter seal fails three years in. We take that seriously.

Our process starts with a pre-install inspection of the rough opening. We check the header, the king studs, the sill condition and the existing water-resistive barrier before we order anything. If the opening isn’t right, we’ll tell you before the window shows up, not after the old one is out.

On install day, we set the frame level, plumb and square, shimming at the anchor points specified by the manufacturer’s approved installation instructions. We use an AAMA 812 low-expansion foam sealant at the interior perimeter – it seals and insulates without distorting the frame. The exterior joint gets a backer rod and sealant profile per AAMA 2400/2410 standard practice, which governs the installation of windows in the field. That’s the part that keeps water out of your wall assembly during a driving rain.

Pembroke Pines has its own exposure realities. Homes near the western edge of the city get a different wind load than sheltered interior lots, and the permitting office here wants to see the actual NOA or FL Product Approval documents. Improper installation compromises the NOA-rated system. A window that’s anchored wrong can fail at the frame, not the glass, and that’s a failure the product test never anticipated. We pull permits where the scope requires it and we know what the building department in Pembroke Pines expects to see. Final step is a water test with a calibrated nozzle to confirm the perimeter is sealed, then cleanup and a walk-through with you.

If you’re replacing a picture window in a Pembroke Pines home and you’re not sure an impact product was ever installed correctly in the first place, call us. We’ll inspect it.

Frequently Asked Questions - Picture & Fixed Windows

Get a Quote - Picture & Fixed Windows in Pembroke Pines

We supply and install Picture & Fixed Windows across Pembroke Pines and the surrounding Broward County communities. Free on-site measurement, itemized line-by-line pricing, and the approval package for your permit. Call (863) 208-6105 and we’ll set it up.

Written by the team at TruePane Windows & Doors, serving Pembroke Pines and Broward County since our founding.
